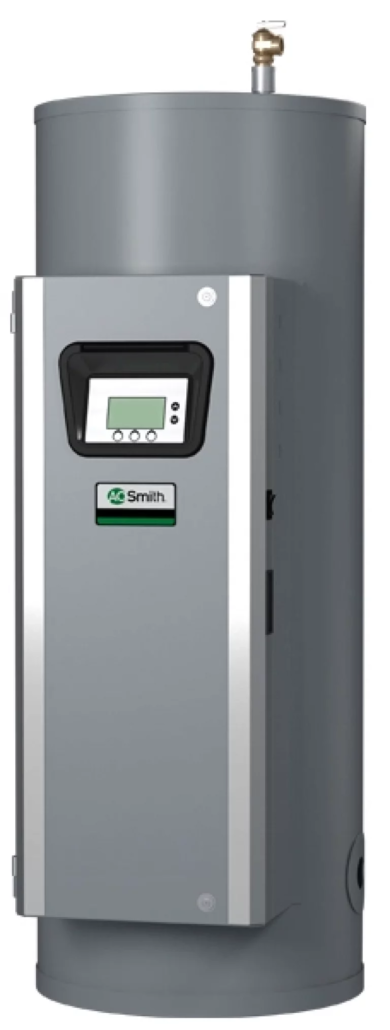

Custom Xi Series Electric DSE
Heavy duty electric heaters with a large selection of capacities and kW inputs.
Features
- All tanks feature ASME tank construction
- Storage capacities of 5 to 119 gallons with inputs ranging from 3 to 90 kW
- Standard voltages: 208, 240 and 480V single-phase and three-phase delta
- 277, 380, 415, 575 and 600 voltages also available
- Advanced electronic controls
- Connect to an existing building management system via BACnet or MODBUS with optional ICC gateway
- Operating set point is adjustable from 90° to 190°F
- 3 year limited tank and 1 year limited parts warranty
Technical documents
- Spec Sheet
- Spec Sheet (Building Management System BACnet and Modbus Interface)
- Installation Manual
- Installation Manual (Building Management System BACnet and Modbus Interface)
- Piping Diagram- One Water Heater
- Piping Diagram- One Water Heater with Horizontal Storage Tank
- Piping Diagram- One Water Heater with Vertical Storage Tank
- Piping Diagram- Two Water Heaters
- Piping Diagram- Two Water Heaters with Horizontal Storage Tank
- Piping Diagram- Two Water Heaters with Vertical Storage Tank
- Piping Diagram- Three Water Heaters
- Piping Diagram- Three Water Heaters with Horizontal Storage Tank
- Piping Diagram- Three Water Heaters with Vertical Storage Tank
- Piping Diagram- Four Water Heaters
- Piping Diagram- Four Water Heaters with Horizontal Storage Tank
- Piping Diagram- Four Water Heaters with Vertical Storage Tank
- Wiring Diagram
- Revit Models
- 3-Part Spec
- Warranty Sheet
