Save Up to 75% on Water Heating with an A. O. Smith Heat Pump
Heat pump water heaters use significantly less energy than standard electric models, helping you lower your monthly energy bills.
Many provinces also offer rebates to reduce your upfront costs.
A. O. Smith’s ProLine® XE and Voltex® AL models offer features designed to reduce energy costs while delivering reliable, high-performance water heating.
Find out about rebates in your area and start saving today!

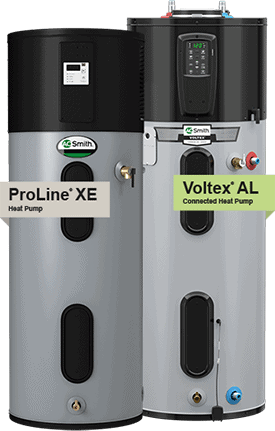

Compare Heat Pumps from A. O. Smith
ProLine® XE
Voltex® AL
FEATURES |
ProLine® XE
|
Voltex® AL
|
|---|---|---|
| Tank Capacities | 50, 66, 80 USG | 50, 66, 80 USG |
| Uniform Energy Factor (UEF) | Up to 3.45 | Up to 3.88 |
| ENERGY STAR® Certified | ✓ | ✓ |
| Connectivity | × | ✓ |
| Recovery Rate @ 90°F Rise | 21 GPH | 20 GPH |
| Noise Level | 51 dBA | 45 dBA |
| Smart Leak Protection | × | ✓ |
| Ducting Capability | Optional ducting kits available | Integrated duct adapters, supports inlet/outlet ducting |
| Minimum Installation Space | Minimum 700 ft³ (19.8 m3 ) installation space for optimal efficiency | As low as 84 ft³ (450 ft³ for enclosed room) |
| Water Connections | Top | Top and Front |
| Warranty | 10-year limited | 10-year limited |
| Power Requirements | 208/240 VAC, 60Hz, 30A | 208/240 VAC, 50/60Hz, 30A |
How it Works
A fan at the top of the hybrid electric heat pump water heater pulls ambient air in from the room it resides in. The air is pulled in through an evaporator while refrigerant in the evaporator absorbs the heat from the air. The refrigerant runs through a compressor which raises the temperature and the pressure. Finally, the heated refrigerant is passed through a condenser coil that is wrapped around the inside of the tank. This helical shape ensures the most efficient transfer of the heat from the refrigerant to the water.
Look around the Voltex® AL Heat Pump
1
2
3
4
5
6
7
Operating Modes
EFFICIENCY
The most energy efficient mode uses the heat pump only.
Use the EFFICIENCY mode to maximize your savings. Going up a tank size will help you stay in this mode longer and will better meet your hot water needs.
HYBRID
Convenient HYBRID mode combines HEAT PUMP and ELECTRIC operation.
In HYRBID mode, your heat pump water heater automatically switches between heat pump and electric operation as needed.
ELECTRIC
Switch to ELECTRIC mode to meet your highest demand times.
When you have house guests, or perhaps just when the whole family is home, ELECTRIC mode ensures your hot water demands are met.
VACATION
Minimize your energy costs when you’re away with VACATION mode.
Enjoy peace of mind with this handy mode that minimizes your energy costs when you aren’t using your hot water.
Annual Operating Cost
*Based on 50USG water heater, average household usage, and Ontario utility rates.
Voltex® AL
Voltex® AL
ProLine® XE
Available Rebates
Select your province to see available heat pump water heater rebates.
Alberta
| Program Name | How to Apply |
|---|---|
| Banff Post-Purchase Rebate Program | Apply Here |
British Columbia
| Program Name | How to Apply |
|---|---|
| CleanBC Better Homes – Income Eligible Heat Pump Water Heater Rebate | Apply Here |
|
Apply Here |
| CleanBC Better Homes – Heat Pump Water Heater Rebate | Apply Here |
|
Apply Here |
Nova Scotia
| Program Name | How to Apply |
|---|---|
| Efficiency Nova Scotia ENERGY STAR® Certified Heat Pump Water Heaters Instant Rebate | Apply Here |
Ontario
| Program Name | How to Apply |
|---|---|
| Home Renovation Savings – Heat Pump Water Heater | Apply Here |
Prince Edward Island
| Program Name | How to Apply |
|---|---|
| Prince Edward Island – Income Eligible Heat Pump Water Heater Rebate | Apply Here |
| Prince Edward Island Heat Pump Water Heater Rebate | Apply Here |
*More details on these rebates can be seen on the desktop version of this page.
